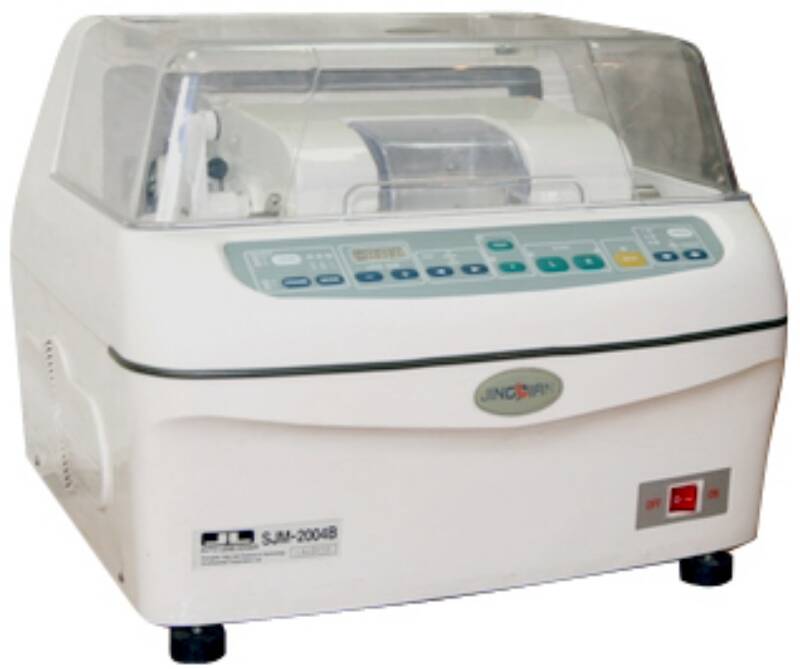

ZM-2 Meuleuse semi auto

Description du produitMeuleuse semi automatique

Galibreuse

Centreuse

Meuble

Pompe

SPECIAL FEATURES:
Main Machine
　 Adjustment of 3F Cut-Grinding pressure
　 Adjustment of lens clamp in gearless
　 Cut-Grinding Time of Single Lens ≤ 3 min
　 Life performance of main grinding wheel ≥ 10,000 PCs (Below hardness 5# Grade)
　 Built-in count displayer
　 Special water case with multi-function of filter and eliminating alkali
System and Main Parts
　 Adopted auto-shadowing cut-grinding system to ensure pressure angle, axis power and radial power in a best position.
　 Diamond wheels adopted abroad material and made of 5+1 new technology reached international level.
　 In order to ensure good quality of the grinding lens, the geometry shape of grinding lens, revision of geometry shape, adjustment of tip shape, cut-grinding power, cut-grinding speed, lens clamp and etc. Are controlled by Computer.
　 There is a technology space in the computer, in which the functions can be raised and expanded.
SPECIFICATIONS
　 Cut-Grinding Clamp: 0.5~0.78MP
　 Workable Diameter: Φ23—Φ80
　 Glossiness: B≤VII
　 Grinding Shape: Inward (Face)≥96%; Outward≥99%
　 Noise: ≤60 dB
　 Grinding Wheel maximum Linear Velocity 15m/Sec. (3 Shift Gears)
　 Grinding Wheel Diameter: Φ100—Φ125
　 Grinding Wheel Chamber: 60~100mm
　 Power Supply: AC 220V/50-60Hz
　 Main Machine Power: ≤350 W
　 Working Environment Temperature: 5~40
　 Dimension: 488×480×410 mm
　 Weight: 58 Kg
