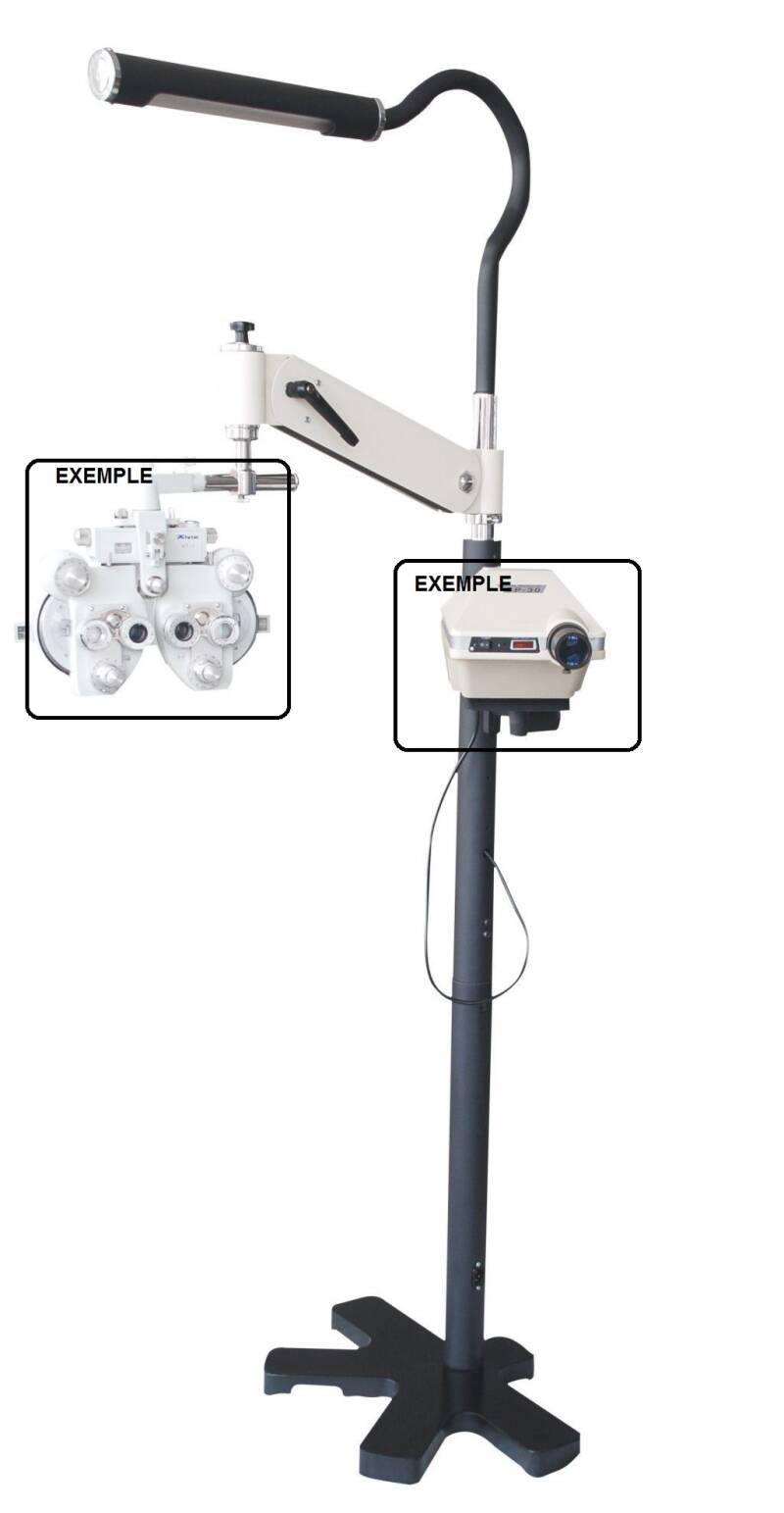

Colonne réfraction

Description du produit
Colonne pour réfracteur+projecteur

vende separé avec le réfracteur et le projecteur

Le diamètre de la tige du bras de support est de16mm, le trou du réfracteur manuel doit donc avoir un diamètre supérieur à 16mm pour permettre le montage

Features

•Especially designed for small room
•Floor stand with cast iron base
•The whole construction work either when the phoropter is on the left or also when it is on the right side of the patient.
•The projector is placed NOT TO THE OTHER SIDE but in front so that the phoropter and projector are in reality at 90° to each other. So that the side of the projector can be changed if the side of the phoropter is changed!

Mechanical Parameters
Up/Down angle of arm: ±30º

Electrical Parameters
Input voltage: 110V/220V AC50Hz～60Hz
Lamp power: 36W
Working temperature: -30°C～+50°C
Relative humidity: less than 90%

Installation Dimension
Figure size: 600mmx745mmx2063mm
Weight: 55kgs

Packing Dimension
Wooden case size: 660 mm x495 mm x190 mm
Carton size: 1050 mm x700 mm x120 mm

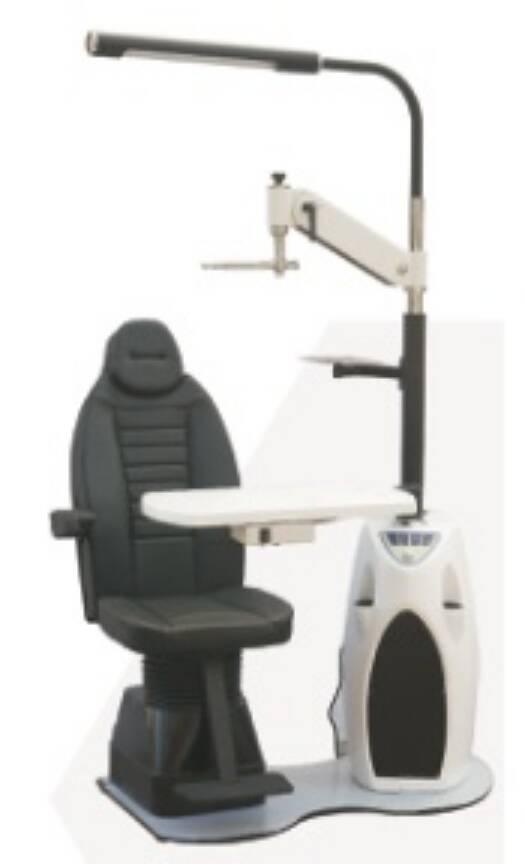

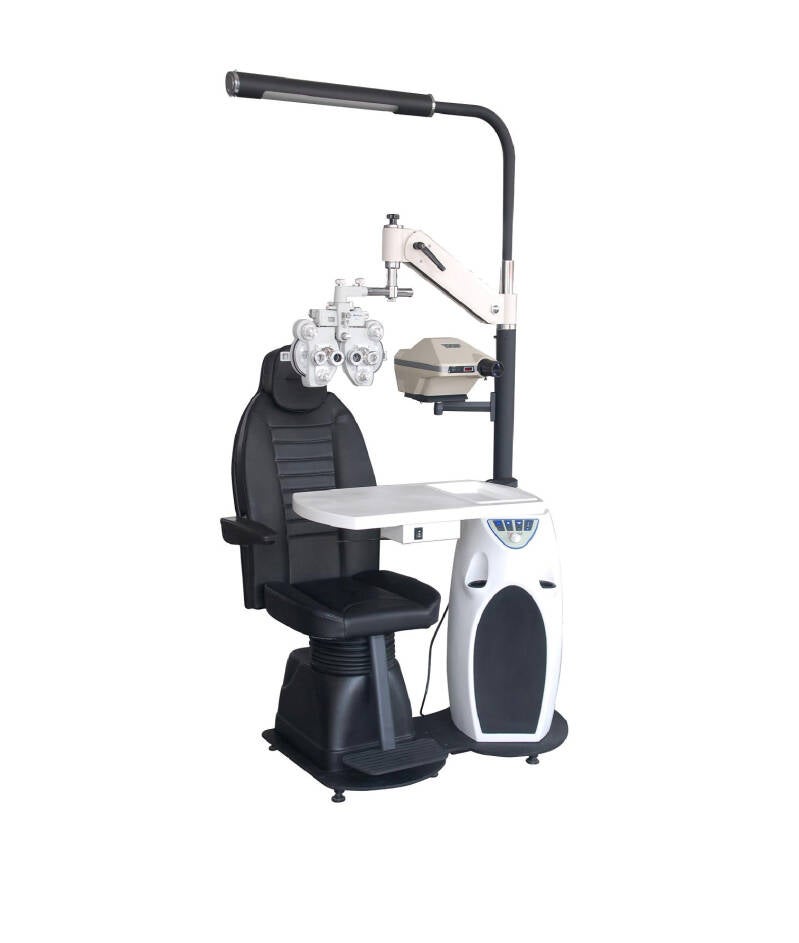

TR-510 Table Unité

Description du produit
Technical Specifications:

Mechanical Parameters

Angle of rotation for rocker: ±30°
Angle of rotation for table: 90°
Small table size: 670mm*405mm

(for one machine, it's possible have a bigger size 840mm*405mm for two machines, the price is 2499€)

Chair height adjustment range : 450mm-590mm
Loading for chair: ~150kg

Electrical Parameters

Input voltage: 110V/220V AC 50Hz~60Hz
Motor power: 55W 24V DC
Lamp: 6W 220V
Fuse: 5A 130/250V AC
Power without load: 1W
Pressure test: 2KV
Working mode: S1
Main wire: 10A 250V
Working temperature: －10℃~＋40℃
Relative humidity: less than 90%
Force of pressing key: 1N~5N
Cooling mode: nature coolingInstallation Dimensions

Figure size: 1190mm*1150mm*1990mm (Big size 1590mm*1150mm*1990mm)
Machine weight: 180kgs
