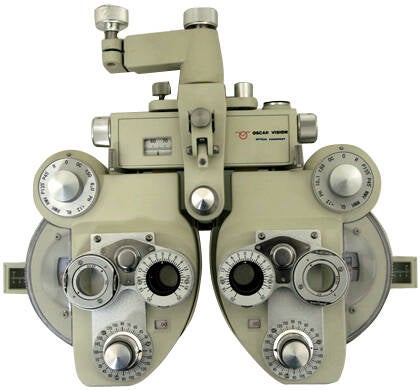

RT3000 Réfracteur

Description du produit
SPECIFICATION

Sphere power: Range: +16.75 to -19.00D Step: 0.25D
Cylinder power: Range: 0.00D to -6.00D
( 0.00D to 8.00D with additional lens of-2.00D)
Step: 0.25D
Cylinder axis: 0 to 180° , 5° Steps
Cross Cylinder: ± 25 diopters
Cross-cylinder lens: ± 0.25D

Rotary prisms: 0Δ To 20Δ , 1Δ Steps

Auxiliary lens dial: [O]-Open aperture (two positions)

[R]-Retinoscopic lens, +1.50D

[P]-Polarizing lens, (45° Left eye, 135° Right eye)

[WMV]or[RMV]-Maddox rod, vertical

White _ left eye

Red _ right eye

[WMH]or[RMH]-Maddox rod, horizontal

White - left eye

Red - right eye

[GL]- Green Lens

[RL]-red Lens

[+. 12]- +0.12D Sphere

[pH]- Pin hole

[10Δ I]or [6Δ U]-10Δ Base-in-left eye

6Δ Base-up-right eye (Dissociating prisms)

[± . 50]-± 0.50 fixed cross cyliner

[OC]- Occluder

P. D. Adjustment: 48-75mm, 1mm steps

Standard Accessory: One near point card with holder and rod, dust cover, face shield and case for lenses.

Standard Accessory lens: Two-. 12D and -2.00 cylinder lenses. Two plano lenses for sealing front opening

Dimensions: 345× 350× 155(mm)

Net weight: Approx. 4.5Kg
